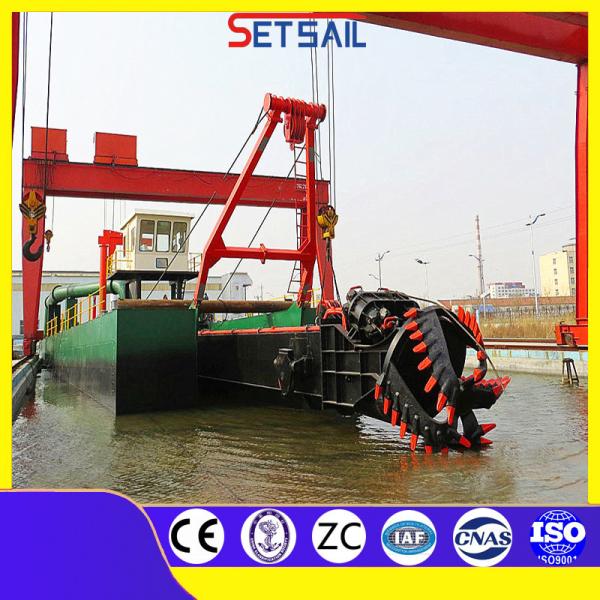

18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine

    Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers

    Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers
    • Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers
    • Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers
    • Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers
    • Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers
    • Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers
    • Buy cheap 18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine from wholesalers

    18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine

    Ask Lasest Price
    Supply Ability : 2500set /Year
    Certification : ISO 9000, ISO 14001,ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025
    Price : Negotiable
    Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month
    Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash
    • Product Details
    • Company Profile

    18 Inch Cutter Suction Dredger with Rexroth Hydraulic System and Cummins Diesel Engine

    18 inch cutter suction sand dredger with hydraulic control system
    Dredging situationSandy with a few mud and gravel .
    Basic application informationWater flow 3500m3 dredging depth 15m Discharge distance 1500 m
    Mainly partsCummins diesel engine. Shijiazhang slurry pump . Rexroth hydraulic system . Siemens PLC . All parts can customized
    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    18 Inch Cutter Suction Dredger with Cummins Diesel Engine

    1.18 inch Cutter suction sand dredger principle image:
    18 Inch Cutter Suction Dredger with Cummins Diesel Engine Above cutter suction drawing let your reference . the precise design according to the precise requirements to make


    Set sail cutter suction dredger used the all famous device . Cummins diesel engine , Shijiazhuang slurry pump Germany hydraulic pump Siemens PLC so on . use the hydraulic control the cutter head to improve the concentration to add the output . High pressure slurry pump through the suction pump the get the mixture of sand and mud from the river lake sea or reservoir so on ,then use the discharge pipe transfer the mixture to the land . Slurry pump power the normal from the diesel engine . especially according to the working situation and the requirement of customer power can designed electric . cutter head deck crane anchor rod and all of hydraulic winch. all of electrical equipment form the Siemens to control all . use the winch to control the cutter head to sector work of right and left.

    2.18 inch Cutter suction sand dredger images :

    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    3.18 inch cutter suction sand dredger feature :
    1One-man operation. The most advanced Siemens PLC control system.
    2New highly effective cutter /wheel drive system
    3Reliable hydraulic system.
    4Fresh water cooling system
    5Completely assembled and fully tested before delivery
    6Very simple and fast assembly with experienced engineers.
    7Standard design, allowing short delivery times
    8Standard spare parts available from stock
    9Designed as standard to qualify for Coastal Waters Certificate
    10Optional equipment available such as spud carriage. anchor boom. DGPS System

    4.Description for cutter suction sand dredger main equipment:
    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    Main diesel engine :
    Make: Cummins.Model:KTA38-M2.
    Power: 895kw we can according to the requirements offer all size diesel engine
    Rpm: 1800r/min.
    Cylinders:12-16.
    Feature:High efficient . full output long continuous working time. low failure.

    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    High pressure pump:
    Make:Shijiazhuang .
    Water flow:3500m3/h.(3000m3-15000m3/h can available).
    Head :48m-66m.
    Capacity:700m3/h
    Discharge distance : 1500m( Booster station can available for long discharge distance )
    Feature: Full power working . The biggest output . long service life .low failure.

    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    Cutter head:
    Cutter head diameter:1800mm.
    Cutter head power:170kw.
    Blade quantity:5.
    Cutter teeth quantity :40 pieces ( according to the all condition to design reasonable quantity )
    Materail:K10.40Cr.( we keep on innovate material )
    Feature:Long service life . simple replacement.. high efficient .low failure.

    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    Generator set :
    Brand : Normal Cummins (we can according to the customer requirements to offer others brand )
    We can support all models on my all dredging machinery .

    5.18 inch cutter suction sand dredger detailed parameter:
    ItemParameter
    Capacity (cubic meter )700m3
    Water flow (cubic meter )3500m3
    Maximum dredging Depth( meter)15m
    Discharge distance (meter)1500m
    Engine power and brand (kw)895kw
    Main Engine fuel consumption (Liter)120L
    Cutter head diameter(mm)1800mm
    Cutter head power(kw)170kw
    PLC systemSiemens
    Hydraulic control systemRexorth
    Slurry pump brand and typeShijiazhuang WN450
    Discharge pipe diameter (mm)450mm
    Total length (meter)38m
    Total width (meter)7.5m
    Total hight (meter)2.2m
    Total weight180T

    6.Mainly size cutter suction dredger parameter:
    NO. ItemWater flow (m3)Capacity(m3)Dredging depth(m)Discharge distance (m)Pump typeMainly engine power(kw)
    8 inch8001608800WN200220
    10 inch100020091000WN250336
    12 inch1500300111200WN350559
    14 inch2000400121500WN300634
    16 inch2500500131500WN350746
    18 inch3500700151500WN450895
    20 inch4000800152000WN5001268
    22 inch50001000162000WN5001491
    24 inch60001200172000WN5502190
    26 inch70001400202200WN6002380
    28 inch80001600202500WN7003000
    Above cutter suction dredger model let your reference . we can do and customized all dredging machinery equipment according to your requirements.
    7.Cutter suction sand dredger successful case :
    Set sail cutter suction dredger exported all parts of the wold . Nigeria .Bangladesh .Malaysia .Philippines.Cameroon . India .Vietnam .Congo more than 70 countries.our high quality products timely professional and high efficiency service let our customers without worries more and more customers favor our products.


    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    8.Company profile and shows:
    Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.
    Factory has manufacture experience more than 20 years.
    More than 50 certificated engineers and technicians.
    We have certification and patent more than 50 item. It contains ISO CE etc.
    Set Sail dredger is sold more than 80 countries .

    18 Inch Cutter Suction Dredger with Cummins Diesel Engine
    9.Customers visit our factory and our certification :18 Inch Cutter Suction Dredger with Cummins Diesel Engine

    Set sail cutter suction dredger factory look forward cooperation with worldwide customers.
